FDA600-12-TCTC

(0)No Reviews yet
$660.92
SKU: FDA600-12-TCTC

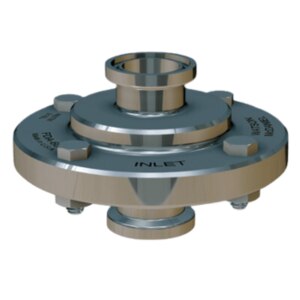

1/2", TC X TC Thermostatic Clean Steam Trap/Air Vent, FDA500
MANUFACTURER: Watson McDaniel
MPN: FDA600-12-TCTC
MANUFACTURER COUNTRY: United States

Contact sales@eggelhof.com for lead time.

Back
DRIP, FDA600 SERIES THERMOSTATIC CLEAN STEAM TRAPS ARE USED AS DRIP TRAPS ON PIPING RUNS ON CLEAN STEAM APPLICATIONS AND FOR DRAINAGE FOR CIP/SIP SYSTEMS AND VARIOUS PROCESS VESSELS.
Back

Technical Specification
Size1/2"
ConnectionTC x TC
Weight (lbs)1.25

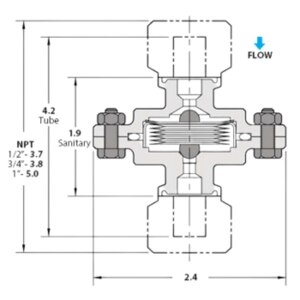

DimensionSee Dimensional Drawing
Max. Operating Pressure (psig)110
Max. Allowable Pressure (psig)145 PSIG up to 338°F
Max. Allowable Temperature350°F @ 132 PSIG
Material Specification
BodyStainless Steel,AISI 316L
NutsStainless Steel,AISI 316L
Thermal ElementStainless Steel,AISI 316L
BoltsStainless Steel,AISI 316L
O-RingTeflon Coated Silicone/FEP
FDA GradeTeflon Coated Silicone/FEP
Cross Reference
Spirax Sarcon/a
Back

Catalog Spec Sheet (pdf)
I&M (pdf)

2D CAD: DWG
3D CAD: STEP
