PA-1

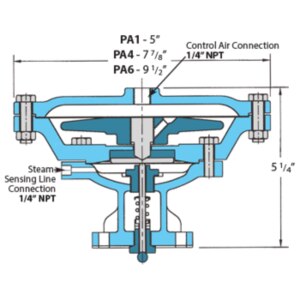

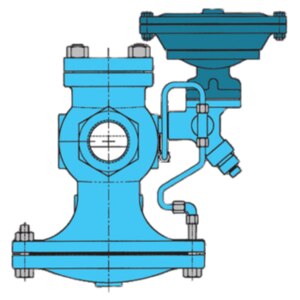

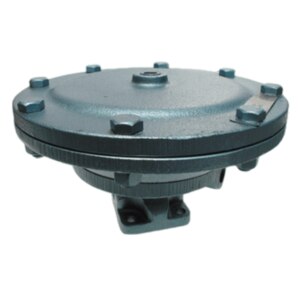

THE PA AIR-LOADED PRESSURE PILOT IS USED WITH THE HD REGULATOR TO CONTROL STEAM PRESSURE ON STEAM MAINS AND PROCESS EQUIPMENT. THE PRINCIPAL ADVANTAGE THE PA-AIR PILOT HAS OVER STANDARD SPRING-LOADED PILOTS IS THAT PRESSURE ADJUSTMENTS TO THE REGULATOR CAN BE MADE FROM A REMOTE LOCATION. A REGULATOR THAT IS LOCATED IN A DIFFICULT TO REACH OR INACCESSIBLE LOCATION CAN BE ADJUSTED BY A REMOTE CONTROL PANEL BOARD. THE PA-AIR PILOT CAN ALSO BE USED IN CONJUNCTION WITH THE PTL OR PTR PNEUMATIC TEMPERATURE CONTROLLERS FOR CONTROLLING TEMPERATURE IN PROCESS APPLICATIONS.
