SUCT-16-N-CI-125

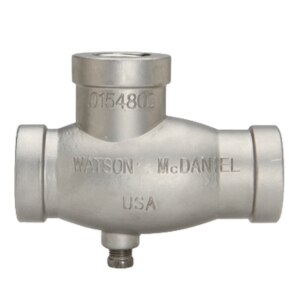

THE WATSON MCDANIEL CAST IRON, BRONZE OR STAINLESS STEEL SUCTION TEE IS A SPECIALIZED TYPE OF PIPE FITTING USED FOR BLENDING, AGITATION, RECIRCULATION, MIXING, AERATION AND HEATING.
| Technical Specification |
| Size | 1 1/2" |
| Connection | NPT |
| Max. Operating Pressure (psig) | 125 |
| Weight (lbs) | 6.00 |

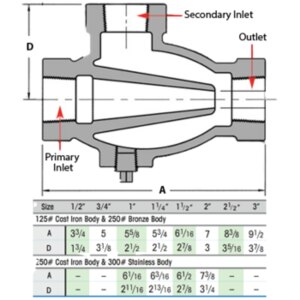

| Dimension | 6.06(A),2.44(B),3.63(C),2.88(D),0.88(E) |
| Material Specification |
| Body | Cast Iron, A126 CLASS 30 |
| Plug | Cast Iron, A126 CLASS 30 |
