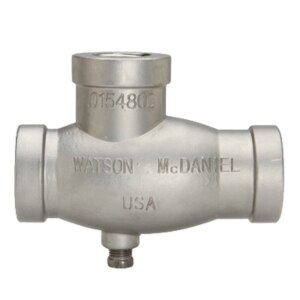

SUCT-17-N-CI-125
THE WATSON MCDANIEL CAST IRON, BRONZE OR STAINLESS STEEL SUCTION TEE IS A SPECIALIZED TYPE OF PIPE FITTING USED FOR BLENDING, AGITATION, RECIRCULATION, MIXING, AERATION AND HEATING.
| Technical Specification |
| Size | 2" |
| Connection | NPT |
| Max. Operating Pressure (psig) | 125 |
| Weight (lbs) | 7.50 |

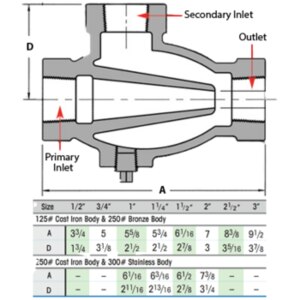

| Dimension | 7(A),2.88(B),4.13(C),3(D),0.94(E) |
| Material Specification |
| Body | Cast Iron, A126 CLASS 30 |
| Plug | Cast Iron, A126 CLASS 30 |
