WT2001-13-N

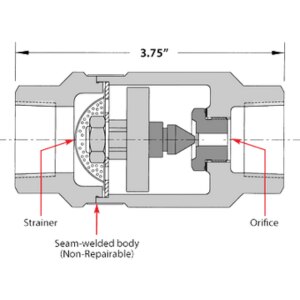

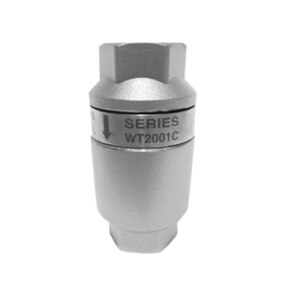

THE WT2000 IS A GENERAL PURPOSE MEDIUM-CAPACITY THERMOSTATIC TRAP THAT CAN BE USED FOR STEAM TRACING, AS A DRIP TRAP ON STEAM MAINS AND STEAM SUPPLY LINES, AS WELL AS FOR PROCESS APPLICATIONS. THEY ARE ALSO COMMONLY USED AS AN AIR VENT ON HEAT EXCHANGERS OR AT THE ENDS OF STEAM MAINS. THERMOSTATIC TRAPS ARE SMALL, LIGHT WEIGHT, OPERATE OVER A WIDE PRESSURE RANGE, AND HAVE EXCELLENT AIR HANDLING CAPABILITIES. DISCHARGING AIR AT START-UP ALLOWS STEAM TO QUICKLY ENTER THE SYSTEM. ALL STAINLESS STEEL CONSTRUCTION AND INTEGRAL STRAINER, MAKE THE WT2000 AN EXCELLENT CHOICE FOR A VARIETY OF APPLICATIONS. TRAP BODY IS PERMANENTLY SEAL WELDED TOGETHER AND THEREFORE NON-REPAIRABLE. CONTAINS AN EXTREMELY STRONG AND RUGGED PRECISION WELDED STAINLESS STEEL THERMAL ELEMENT WHICH IS HIGHLY RESISTANT TO WATERHAMMER.
