0140-C01-ME0100

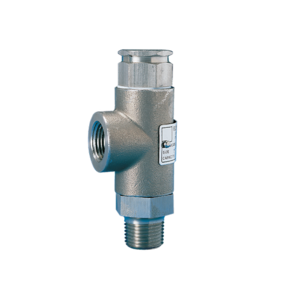

Model 140 is a general utility valve of all stainless steel construction, including spring, for non-code liquid applications.
• Compact design requires minimum installation space.
• Angle lapped seat provides tight shutoff.
• Tested and inspected for pressure setting and leakage.
• Female NPT inlet option available. • 50 psig (3.45 barg) maximum back pressure[1]
Connections: Threaded NPT
Temperature range: -60 to 406°F (-51 to 208°C)
Pressure range: 5 to 300 psig (0.34 to 20.7 barg)
Set Point: 100 PSI
