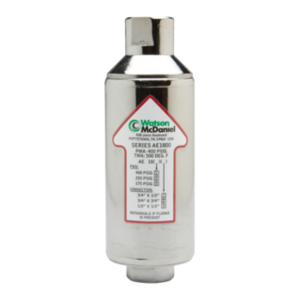

AE1832-N
THE AE1800 AIR ELIMINATOR IS USED FOR THE REMOVAL OF AIR AND OTHER GASES FROM VESSELS OR PIPING SYSTEMS WITHOUT ALLOWING THE CONTAINED LIQUID TO ESCAPE.
| Technical Specification |
| Size | 3/4" x 3/4" |
| Connection | NPT |
| Max. Operating Pressure (psig) | 400 |
| Max. Operating Temperature | 500˚F |
| Max. Allowable Pressure (psig) | 400 PSIG up to 500˚F |
| Max. Allowable Temperature | 500˚F @ 400 PSIG |
| Weight (lbs) | 4 |

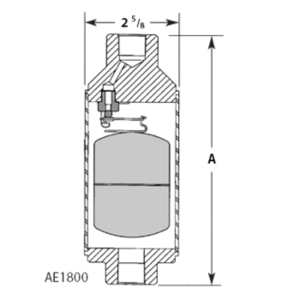

| Height | 7.5(A) |
| Orifice Size | .125" |
| Material Specification |
| Body | 304 SS |
| Float Assembly | 304 SS |
| Lever Assembly | Hardened SST (55Rc) |
| Seat | 420 SS |
| Washer | 302 SS |
