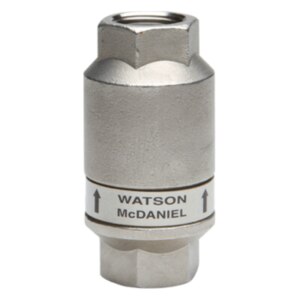

AV2001-13-N
THE AV2000 AIR VENT IS USED ON INDUSTRIAL STEAM APPLICATIONS UP TO 650 PSIG FOR THE REMOVAL OF AIR AND NON-CONDENSABLE GASES FROM PROCESS EQUIPMENT, VESSELS AND PIPING. THE AIR VENT SHOULD BE LOCATED AT A HIGH POINT IN THE SYSTEM OR VESSEL AND CAN BE INSTALLED IN ANY ORIENTATION.
| Technical Specification |

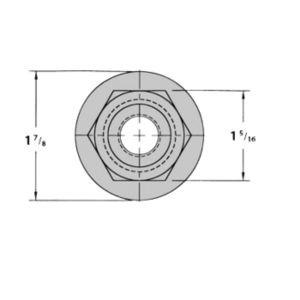

| Size | 3/4" |
| Connection | NPT |
| Orifice Size | 3/16" |
| Max. Operating Pressure (psig) | 650 |
| Max. Operating Temperature | Saturated Steam Temperature. |
| Max. Allowable Pressure (psig) | 1032 PSIG @ 100°F |
| Max. Allowable Temperature | 750°F @ 800 PSIG |
| Weight (lbs) | 1.25 |

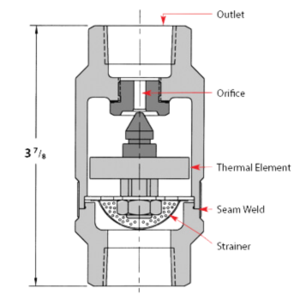

| Material Specification |
| Body | Stainless Steel |
