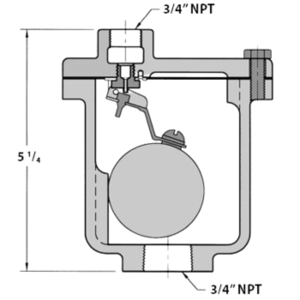

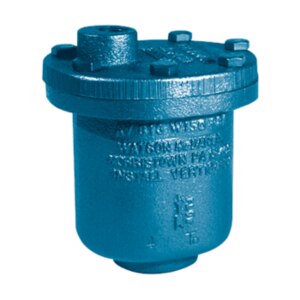

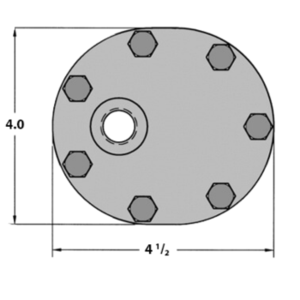

AV813-13-N
THE AV813 AIR ELIMINATOR IS USED FOR THE REMOVAL OF AIR AND OTHER GASES FROM VESSELS OR PIPING SYSTEMS WITHOUT ALLOWING THE CONTAINED LIQUID TO ESCAPE.
| Technical Specification |
| Size | 3/4" |
| Connection | NPT |
| Orifice Size | 5/16" |
| Max. Operating Pressure (psig) | 650 |
| Max. Operating Temperature | Saturated Steam Temperature. |
| Max. Allowable Pressure (psig) | 1032 PSIG @ 100°F |
| Max. Allowable Temperature | 750°F @ 800 PSIG |
| Weight (lbs) | 1.25 |
| Material Specification |
| Body | Stainless Steel |
