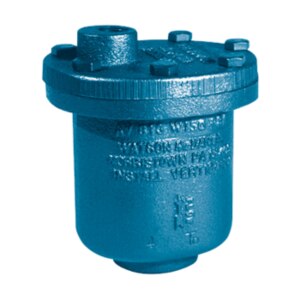

AV813-13-N-V
THE AV813 AIR ELIMINATOR IS USED FOR THE REMOVAL OF AIR AND OTHER GASES FROM VESSELS OR PIPING SYSTEMS WITHOUT ALLOWING THE CONTAINED LIQUID TO ESCAPE.
| Technical Specification |
| Size | 3/4" |
| Connection | NPT |
| Max. Operating Pressure (psig) | 150 |
| Weight (lbs) | 5 |
| Material Specification |
| Cover | Cast Iron,ASTM A-126 Class B |
| Body | Cast Iron,ASTM A-126 Class B |
| Gasket | Grafoil |
| Seat Yoke | Stainless Steel,Type 304 |
| Valve Seat | Stainless Steel,Type 304 |
| Pivot Pin | Stainless Steel,Type 304 |
| Valve Head | EPDM(Viton optional) |
| Lever | Stainless Steel,Type 304 |
| Float | Stainless Steel,Type 304 |
| Washer | Stainless Steel,Type 304 |
| Screw | Stainless Steel,Type 304 |
