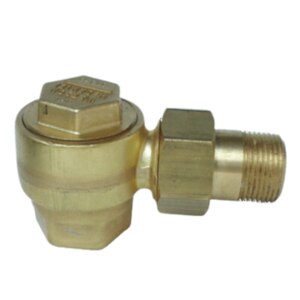

AVT125-13-N
THE AVT125 IS USED ON STEAM APPLICATIONS UP TO 125 PSIG FOR REMOVAL OF AIR AND NON-CONDENSABLE GASES FROM PROCESS EQUIPMENT, VESSELS AND PIPING. THE AIR VENT SHOULD BE LOCATED AT A HIGH POINT IN THE SYSTEM OR VESSEL AND CAN BE INSTALLED IN ANY ORIENTATION.
| Technical Specification |
| Size | 3/4" |
| Connection | NPT |
| Max. Operating Pressure (psig) | 125 |
| Orifice Size | 0.31" |
| Weight (lbs) | 1.5 |
| Material Specification |
| Body | forged Brass,CA 377 |
