CIY-13-N-020

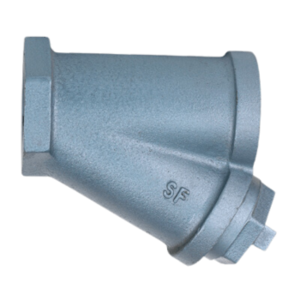

THE CIY Y-STRAINER IS USED TO STRAIN DIRT PARTICLES FROM FLUID IN PIPELINES AND PROVIDE INEXPENSIVE PROTECTION FOR COSTLY PUMPS, METERS, VALVES, TRAPS, TURBINES AND COMPRESSORS.
| Technical Specification |
| Size | 3/4" |
| Connection | NPT |
| Weight (lbs) | 2.5 |

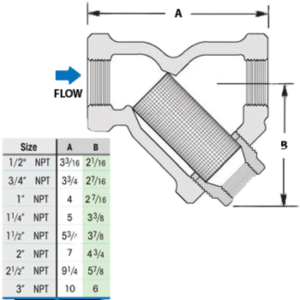

| Dimension | 3.75(A),2.44(B) |
| Screen Mesh | 20 |
| Blowdown NPT | 3/8 |
| Material Specification |
| Body | Cast Iron, A126 CLASS B |
| Plug | Cast Iron, A126 CLASS B |
| Cover | Cast Iron, A126 CLASS B |
| Screen | Stainless Steel |
| Gasket | Grafoil |
| Gasket(Flg Cover) | Garlock 3000 |
