CSY-14-N-020

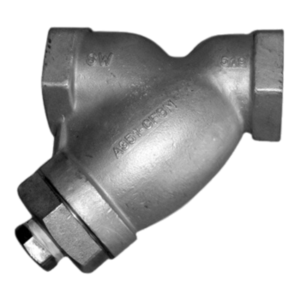

THE CSY/SSY Y-STRAINERS ARE USED TO STRAIN DIRT PARTICLES FROM FLUID IN PIPELINES AND PROVIDE INEXPENSIVE PROTECTION FOR COSTLY PUMPS, METERS, VALVES, TRAPS, TURBINES AND COMPRESSORS.
| Technical Specification |
| Size | 1" |
| Connection | NPT |
| Weight (lbs) | 5 |

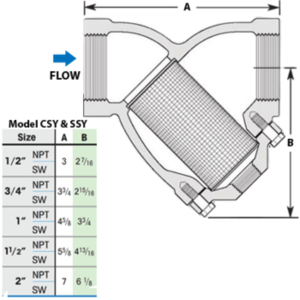

| Dimension | 4.63(A),3.75(B) |
| Screen Mesh | 20 |
| Blowdown NPT | 3/8 |
| Material Specification |
| Body | Steel, A216 GR WCB |
| Plug | Steel, A216 GR WCB |
| Cover | Steel, A216 GR WCB |
| Screen | Stainless |
| Gasket | SS Spiral Wound |
