NSN004P50G

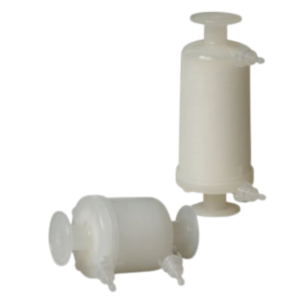

3M NANOSHIELD MDC HOLLOW FIBER SERIES FILTER CAPSULES CONTAIN 3M NANOSHIELD SERIES FILTER CARTRIDGES AVAILABLE WITH MEMBRANE MATERIAL OF CONSTRUCTION OF POLYPROPYLENE, AND POLYETHYLENE. 3M NANOSHIELD MDC HOLLOW FIBER SERIES FILTER CAPSULES HAVE BEEN ENGINEERED TO COMBINE A HIGH LEVEL OF PARTICLE RETENTION WITH HIGH FLOW RATES AND LOW PRESSURE DROP FOR THE MOST DEMANDING APPLICATIONS.
| Industries | Manufacturing,Microelectronics,Semiconductor manufacturing |
| Category Name | Capsule Filters |
| Filter Technology | Membrane |
| Micron Rating | 0.1 micrometer, 0.01 micrometer, 0.005 micrometer, 0.02 micrometer, 0.05 micrometer |
| Product Series | MDC |
| Grade | 0.1 micron |
| Brand | NanoSHIELD™ |
| Overall Length (Imperial) | 3 inch, 5 inch |
| Overall Width (Metric) | 5.8 centimeter |
| Overall Diameter (Imperial) | 3 inch |
| Overall Length (Metric) | 7.62 centimeter, 12.7 centimeter |
| End Modification | 1/4" Swagelok, 1/4" Swagelok fitting, 1/4" Flowell Series 60 Fitting |
| Overall Diameter (Metric) | 7.62 centimeter |
| Filter Type | Filter Capsule |
| Overall Width (Imperial) | 2.28 inch |
| Application | High Purity Chemicals |
