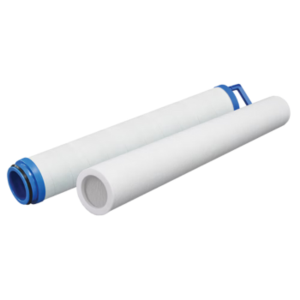

PCHG-336-SCW
THE PEACH DYNASEP, SERIES PCHG, CARTRIDGE IS A GREAT CHOICE FOR REMOVING DEFORMABLE & SHEAR SENSITIVE CONTAMINANTS FOUND IN NATURAL GAS STREAMS. THIS CARTRIDGE CAN BE USED IN THE PECO SERIES 75 AND SERIES 85 VESSELS, AS WELL AS IN SEVERAL COMPETITOR FILTER-SEPARATOR VESSELS. THE SYNTHETIC CONSTRUCTION ALLOWS FOR AN ENVIRONMENTALLY FRIENDLY PRODUCT AND AN EXCELLENT UPGRADE OPTION TO TRADITIONAL FIBERGLASS CARTRIDGES. THE SERIES PCHG IS MADE USING THE PATENTED PEACH PROCESS WHICH PROVIDES INCREASED FLOW, HIGH EFFICIENCY AND EFFECTIVE REMOVAL OF CONTAMINANTS. THIS EQUATES TO INCREASED OPERATIONAL LIFE, FEWER CHANGE-OUTS, REDUCED MAINTENANCE AND REDUCED COSTS.
| Micron Rating: | 0.3 |
| Maximum Pressure Differential: | 30 PSID |
| pH Range: | 3-9 |
| Nominal Inside Diameter: | 3" |
| Maximum Operating Temperature: | 240 F |
| End Cap Configuration: | DOE - Double Open End |
| Seal Material: | Integral PEACH end serves as seal |
| Cartridge Length: | 36" |
| Nominal Outside Diameter: | 4.5" |
| Core Material: | Tin-Plated Steel |
| End Cap Material: | Polyester |
| Body Material: | N/A |
| Flow Direction: | Outside-to-inside |
| Changeout Pressure Differential: | 15 PSID |
| Product Series: | PCHG |
| Filter Material: | Polyester |
| Filter Construction: | PEACH Depth |
| Model Number: | ELMT PCHG-336-SCW |
| Division: | Industrial Process Filtration Division |
| Brand: | PECO |
| Filter Construction: | PEACH Depth |
| Changeout Pressure Differential: | 15 psid |
| Flow Direction: | Outside-to-Inside |
| Quantity per Box: | 4.0 |
| Product Type: | Filter Cartridge |
| Industry: | Oil and Gas |
| Application: | Gas Particulate Filtration |
| Technology: | Filtration |
