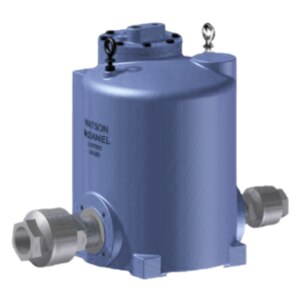

PMPC-3X2-N-SS
THE PMPC MODEL DUCTILE IRON NON-ELECTRIC PRESSURE MOTIVE PUMP IS TYPICALLY USED WHEN LIQUIDS MUST BE MOVED TO HIGHER ELEVATION, HIGHER PRESSURE OR EXTENDED DISTANCES. THIS STAND-ALONE PUMP IS CAPABLE OF OPERATING WITH A MAXIMUM MOTIVE PRESSURE OF 200 PSIG PROVIDED BY STEAM, AIR OR OTHER GAS SUPPLY. ASME CODE STAMP IS AVAILABLE
| Technical Specification |
| Size | 3" x 2" |
| Max. Operating Pressure (psig) | 200 |
| Pump Rating | 200 PSIG @ 650˚F |
| Material Specification |
| Pump Body | Ductile Iron |
| Cover Gasket | Grafoil |
| Internals | Stainless Steel |
| Check valves | Stainless Steel |
