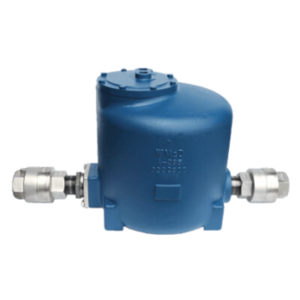

PMPNT-1X1-N-SS
THE PMPNT(S) NON-ELECTRIC PRESSURE MOTIVE PUMPS ARE LIGHT IN WEIGHT AND HAVE AN EXTREMELY LOW-PROFILE. THIS STAND-ALONE PUMP IS CAPABLE OF OPERATING WITH A MAXIMUM MOTIVE PRESSURE OF 125 PSIG PROVIDED BY STEAM, AIR OR OTHER GAS SUPPLY. ASME CODE STAMP AVAILABLE UPON REQUEST.
| Technical Specification |
| Size | 1" x 1" |
| Max. Operating Pressure (psig) | 125 |
| Pump Rating | 125 PSIG @ 450˚F |
| Material Specification |
| Pump Body | Ductile Iron |
| Cover Gasket | Garlock |
| Internals | Stainless Steel |
| Check valves | Stainless Steel |
