PTUBW-29-8

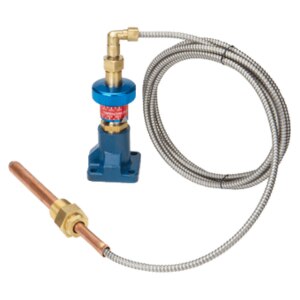

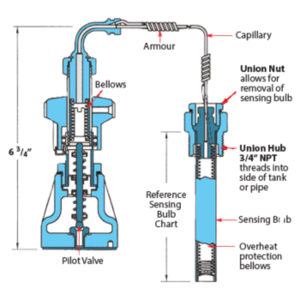

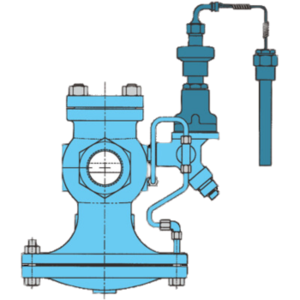

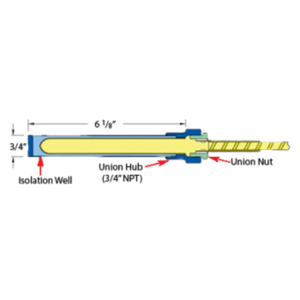

PTUBW & PTUSW BULB TYPE IS PTU STYLE COPPER SENSING BULB WITH THERMOWELL. THE ISOLATION WELL, WHICH ISOLATES THE COPPER SENSING BULB FROM THE PROCESS FLUID, IS AVAILABLE IN EITHER BRASS OR 316L STAINLESS STEEL. SENSING BULB CAN BE REMOVED BY UNSCREWING UNION NUT. UNION HUB & ISOLATION WELL REMAIN IN PLACE WHICH ALLOWS THE REMOVAL OF THE SENSING BULB WITHOUT HAVING TO DRAIN THE TANK. STAINLESS STEEL ISOLATION WELLS ARE USED TO PROTECT THE COPPER SENSING BULB FROM CORROSIVE FLUIDS. BRASS WELLS HAVE BETTER HEAT TRANSFER. THE PT-TEMPERATURE PILOTS ARE USED WITH THE HD REGULATOR TO CONTROL TEMPERATURE IN VARIOUS PROCESSES AND SYSTEMS. SOME EXAMPLES ARE: OIL HEATERS, OVENS, PROCESS HEATERS, VATS, DRYERS AND JACKETED KETTLES. THERMOSTATIC SENSING BULB COMES WITH STANDARD 8-FT. OR 15-FT. CAPILLARY LENGTHS. TEMPERATURE ADJUSTMENT IS ACCOMPLISHED BY ROTATING AN ADJUSTMENT KNOB TO THE DESIRED TEMPERATURE SETTING. THE HD REGULATOR CAN BE USED WITH BOTH THE PP-PRESSURE PILOT AND PT-TEMPERATURE PILOT SIMULTANEOUSLY TO LIMIT PRESSURE AND CONTROL TEMPERATURE IN PROCESS APPLICATIONS.
