TD600S-13-N

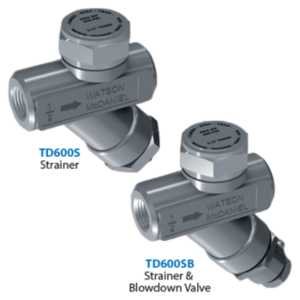

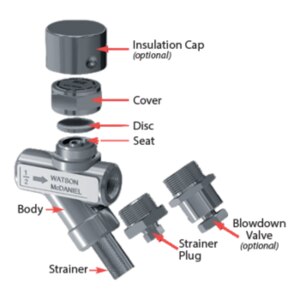

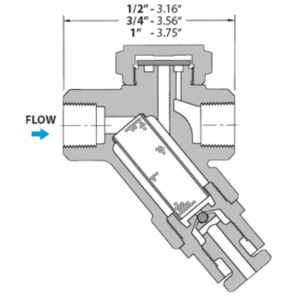

TD600S MODEL STEAM TRAPS WITH INTEGRAL STRAINER ARE MOST COMMONLY USED IN DRIP APPLICATIONS, SUCH AS DRAINING CONDENSATE FROM STEAM MAINS AND STEAM SUPPLY LINES. THEY CAN ALSO BE USED FOR STEAM TRACING APPLICATIONS. THESE TRAPS ARE SUITABLE FOR OUTDOOR APPLICATIONS THAT ARE SUBJECT TO FREEZING AS WELL AS SUPERHEATED STEAM CONDITIONS. THEY ARE COMPACT AND RUGGED WITH ONLY A SINGLE MOVING PART. INTEGRAL STRAINER PROTECTS AGAINST DIRT AND SCALE. IF A FULLY IN-LINE REPAIRABLE DESIGN IS REQUIRED, THE TD700S OR THE UTD450 WITH UNIVERSAL QUICKCHANGE CONNECTOR IS RECOMMENDED.
