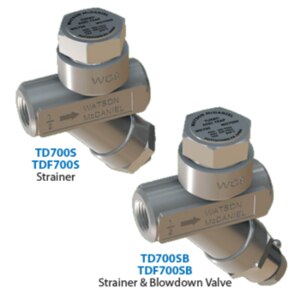

TD700SB-13-N

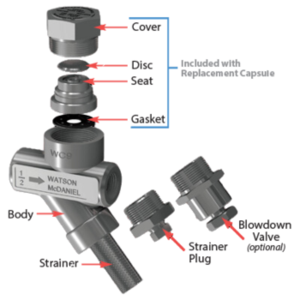

THE TD700S THERMODYNAMIC STEAM TRAP IS COMMONLY USED AS A DRIP TRAP ON STEAM MAINS AND STEAM SUPPLY LINES. THESE TRAPS ARE USED ON TRACING APPLICATIONS; HOWEVER, THERMOSTATIC TRAPS ARE NORMALLY RECOMMENDED FOR THIS SERVICE. SUPPLIED WITH AN INTEGRAL STRAINER AND OPTIONAL BLOW DOWN VALVE TO PROTECT THE TRAP FROM CONTAMINATION. THE INTERNAL WORKING MECHANISM OF THE TD700S CAN BE COMPLETELY REPLACED WHILE THE TRAP BODY REMAINS IN LINE. IDEAL FOR OUTDOOR APPLICATIONS THAT ARE SUBJECT TO FREEZING AND FOR SUPER HEATED STEAM CONDITIONS. TDF700S IS FORGED STEEL WITH FULL MATERIAL TRACEABILITY (MTR)FOR PETROLEUM INDUSTRY.
