UFT450-065
THE UFT450 FLOAT & THERMOSTATIC STEAM TRAP MODULE CAN BE USED ON SMALL PROCESS EQUIPMENT WHICH GENERATE LIGHT CONDENSATE LOADS. F&T TRAPS HAVE EXCELLENT AIR HANDLING CAPABILITY. THESE F&T TRAP MODULES CAN ALSO BE USED IN DRIP SERVICE ON STEAM MAINS AND STEAM SUPPLY LINES. MOUNTS TO ANY UNIVERSAL CONNECTOR.
| Technical Specification |
| Size | n/a |
| Connection | n/a |
| Weight (lbs) | 5.5 |

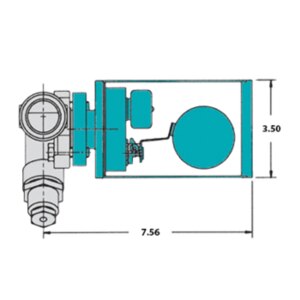

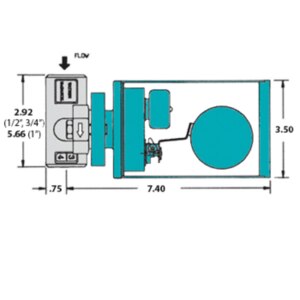

| Dimension | See Dimensional Drawing w/ Universal Connector |
| Max. Operating Pressure (psig) | 65 |
| Max. Allowable Pressure (psig) | 720 PSIG @ 100°F |
| Max. Allowable Temperature | 800°F @ 400 PSIG |
| Cross Reference |
| Spirax Sarco | UFT14 |
