USIB450H-200
THE USIB450 INVERTED BUCKET STEAM TRAP MODULES MUST BE MOUNTED TO A UNIVERSAL CONNECTOR. THEY ARE TYPICALLY USED FOR DRIP APPLICATIONS SUCH AS DRAINING CONDENSATE FROM STEAM MAINS OR STEAM SUPPLY LINES AS WELL AS FOR STEAM TRACING APPLICATIONS. USIB450H IS THE HIGHER CAPACITY MODEL. STEAM TRAP MODULES CAN BE USED WITH OTHER MANUFACTURERS UNIVERSAL CONNECTORS. SEE INSTALLATION AND MAINTENANCE REGARDING USING TRAP IN SUPERHEATED APPLICATIONS.
| Technical Specification |
| Size | n/a |
| Connection | n/a |
| Weight (lbs) | 6.5 |

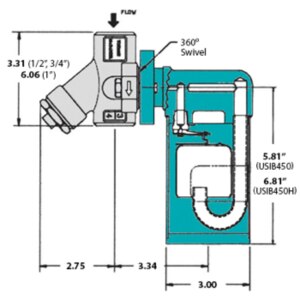

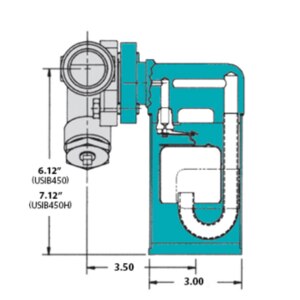

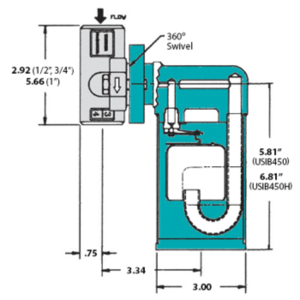

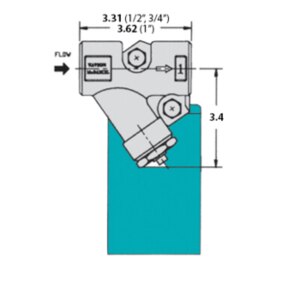

| Dimension | See Dimensional Drawing w/ Universal Connector |
| Max. Operating Pressure (psig) | 200 |
| Max. Allowable Pressure (psig) | 720 PSIG @ 100°F |
| Max. Allowable Temperature | 800°F @ 400 PSIG |
| Cross Reference |
| Spirax Sarco | UIB30H |
