UTD450

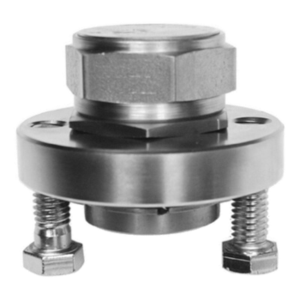

DESIGNED TO WORK AS A DRIP TRAP FOR THE DRAINING OF CONDENSATE FROM STEAM MAINS AND OTHER STEAM SUPPLY LINES, THE UTD450 THERMODYNAMIC STEAM TRAP MODULE CAN BE USED ANYWHERE CONVENTIONAL THERMODYNAMIC STEAM TRAPS ARE USED. CAN ALSO BE USED ON TRACING APPLICATIONS. THIS MODEL IS ONLY RECOMMENDED FOR HORIZONTAL PIPING INSTALLATIONS TO ALLOW THE CAP TO BE ORIENTED UPWARDS. THE UTD450 MOUNTS TO ANY 2-BOLT QUICK-CHANGE UNIVERSAL CONNECTOR. THE UTD450 IS RECOMMENDED FOR HORIZONTAL PIPING ONLY SO THAT CAP CAN BE ORIENTED UPWARDS, AS SHOWN.
| Technical Specification |
| Size | n/a |
| Connection | n/a |
| Weight (lbs) | 1.75 |

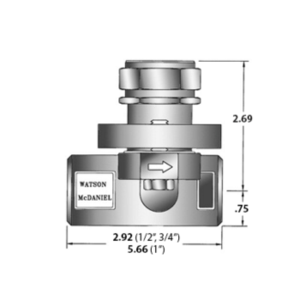

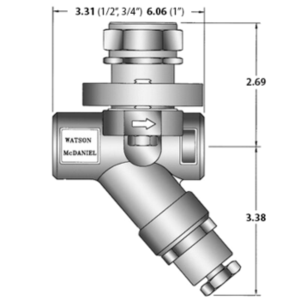

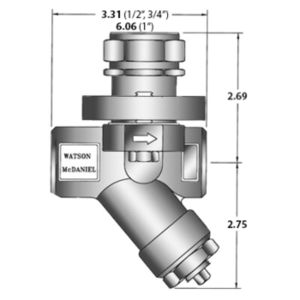

| Dimension | See Dimensional Drawing w/ Universal Connector |
| Max. Operating Pressure (psig) | 450 |
| Max. Allowable Pressure (psig) | 720 PSIG @ 100°F |
| Max. Allowable Temperature | 800°F @ 400 PSIG |
| Cross Reference |
| Spirax Sarco | n/a |
