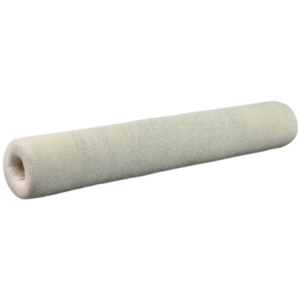

WC-336-C-75
TEX-PURE CS/FMP/FT/FTS/GF/PCL/PW/WC ROLLED DEPTH STYLE "SOCK" CARTRIDGES ARE AVAILABLE IN A VARIETY OF MATERIALS WITH THE MOST COMMON BEING A COTTON/EXCELSIOR BLEND. ORIGINALLY CREATED IN THE 1930'S FROM SIMPLE, READILY AVAILABLE COTTON MATERIALS AND INTRODUCED TO THE OIL & GAS INDUSTRY FOR COMPRESSOR LUBE OIL FILTRATION, IN THE DECADES SINCE IT HAS BECOME AN INDUSTRY ICON KNOWN AS THE "SOCK FILTER". TODAY, TEX-PURE CARTRIDGES ARE AVAILABLE IN A VARIETY OF MATERIALS PROVIDING FLEXIBLE AND ECONOMICAL FILTRATION FOR MANY INDUSTRIAL APPLICATIONS. TEX-PURE IS AVAILABLE FROM 2 TO 100 MICRON RATING OPTIONS. TEX-PURE CAN BE USED IN PECO SERIES 55 LIQUID VESSELS OR COMPETITOR VESSELS OF SIMILAR DESIGN. INDUSTRIES OIL & GAS FEATURES/BENEFITS WIDE MATERIAL SELECTION FOR COMPATIBILITY WITH MANY FLUIDS INTERNAL SPRING (MOST ITEMS) FOR COMPRESSION SEALING IN VESSEL APPLICATIONS LUBE OILS AMINE GLYCOL LIQUID FUELS HEAT TRANSFER FLUIDS
Technical Specifications
| pH Range: | 3-9 |
| Body Material: | Cotton Sock |
| Product Series: | WC |
| Nominal Outside Diameter: | 3" |
| Core Material: | Tin-Plated Steel |
| Maximum Pressure Differential: | 110 psi |
| End Cap Material: | N/A |
| Maximum Operating Temperature: | 350 F |
| Filter Material: | White Cotton |
| End Cap Configuration: | DOE- w/ internal CS compression spring |
| Model Number: | ELMT WC-336-C- 75 |
| Nominal Inside Diameter: | 1.6" |
| Cartridge Length: | 36.6" |
| Micron Rating: | 75 |
| Division: | Industrial Process Filtration Division |
| Brand: | PECO |
| Filter Construction: | Rolled Depth |
| Changeout Pressure Differential: | 20 PSID |
| Flow Direction: | Outside-to-inside |
| Quantity per Box: | 12 |
| Product Type: | Filter Cartridge |
| Industry: | Oil & Gas |
| Application: | Liquid Particulate Filtration |
| Technology: | Filtration |
