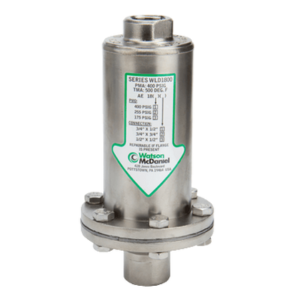

WLD1812R-N
THE WLD1800R SERIES ARE USED ON INDUSTRIAL AIR AND GAS APPLICATIONS FOR DRAINAGE OF LIQUID FROM SYSTEMS.
| Technical Specification |
| Size | 3/4" x 3/4" |
| Connection | NPT |
| Max. Operating Pressure (psig) | 400 |
| Max. Operating Temperature | 500°F |
| Design Pressure | 401 PSIG @ 500°F |
| Temperature Rating | 500°F @ 400 PSIG |
| Material Specification |
| Body | 304 SS |
| Seat | Hardened Stainless Steel |
| Gasket | Grafoil |
| Cross Reference |
| Armstrong | 32-LD |
