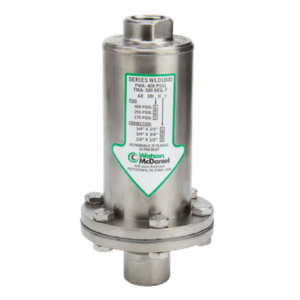

WLD1823R-N
THE WLD1800R SERIES ARE USED ON INDUSTRIAL AIR AND GAS APPLICATIONS FOR DRAINAGE OF LIQUID FROM SYSTEMS.
| Technical Specification |
| Size | 1/2" x 1/2" |
| Connection | NPT |
| Max. Operating Pressure (psig) | 255 |
| Max. Operating Temperature | 500°F |
| Design Pressure | 405 PSIG @ 500°F |
| Temperature Rating | 500°F @ 400 PSIG |
| Material Specification |
| Body | 304 SS |
| Seat | Hardened Stainless Steel |
| Gasket | Grafoil |
| Cross Reference |
| Armstrong | 32-LD |
