WLD600-200-14-SW

(0)No Reviews yet
$2,264.17
SKU: WLD600-200-14-SW

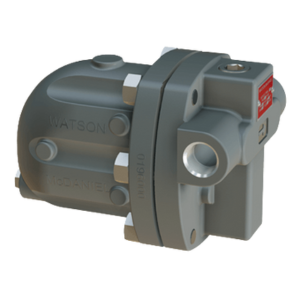

1", SW, 200PSIG PMO, Float Type Liquid Drainer , WLD600
MANUFACTURER: Watson McDaniel
MPN: WLD600-200-14-SW
MANUFACTURER COUNTRY: United States

Contact sales@eggelhof.com for lead time.

Back
WLD600-SERIES HAVE CAST STEEL BODIES. THE WLD601-SERIES HAVE STAINLESS STEEL BODIES. USED FOR DRAINING LIQUIDS FROM TANKS, VESSELS, AND PIPING SYSTEMS CONTAINING PRESSURIZED AIR OR OTHER GASES.
Back

Technical Specification
Size1"
ConnectionSocket Weld
Max. Operating Pressure (psig)200
Max. Operating Temperature750°F
Design Pressure990 PSIG @ 100°F
Temperature Rating750°F @ 670 PSIG
Material Specification
BodyCast Steel, ASTM A-216
CoverCast Steel, ASTM A-216
Cover StudsSteel,AS 193,GR B7
Cover NutsSteel,SA 194,GR 2H
Cover GasketStainless Steel Reinforced Grafoil
Valve AssemblyStainless Steel,AISI 431
Pivot AssemblyStainless Steel,17-4 PH
Mounting ScrewsStainless Steel Hex Head,18-8
FloatStainless Steel,ASTM-240,304
Cross Reference
Spirax SarcoFA450
ArmstrongLS,MS
Back

Catalog Spec Sheet (pdf)
I&M (pdf)

3D CAD: STEP
