WLD600-300-13-N

(0)No Reviews yet
$1,989.17
SKU: WLD600-300-13-N

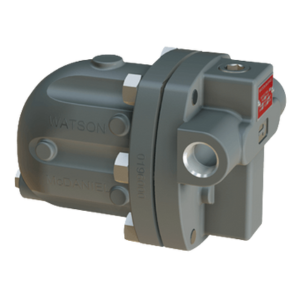

3/4", NPT, 300PSIG PMO, Float Type Liquid Drainer , WLD600
MANUFACTURER: Watson McDaniel
MPN: WLD600-300-13-N
MANUFACTURER COUNTRY: United States

Contact sales@eggelhof.com for lead time.

Back
WLD600-SERIES HAVE CAST STEEL BODIES. THE WLD601-SERIES HAVE STAINLESS STEEL BODIES. USED FOR DRAINING LIQUIDS FROM TANKS, VESSELS, AND PIPING SYSTEMS CONTAINING PRESSURIZED AIR OR OTHER GASES.
Back

Technical Specification
Size3/4"
ConnectionNPT
Max. Operating Pressure (psig)300
Max. Operating Temperature750°F
Design Pressure990 PSIG @ 100°F
Temperature Rating750°F @ 670 PSIG
Material Specification
BodyCast Steel, ASTM A-216
CoverCast Steel, ASTM A-216
Cover StudsSteel,AS 193,GR B7
Cover NutsSteel,SA 194,GR 2H
Cover GasketStainless Steel Reinforced Grafoil
Valve AssemblyStainless Steel,AISI 431
Pivot AssemblyStainless Steel,17-4 PH
Mounting ScrewsStainless Steel Hex Head,18-8
FloatStainless Steel,ASTM-240,304
Cross Reference
Spirax SarcoFA450
ArmstrongLS,MS
Back
Catalog Spec Sheet (pdf)
I&M (pdf)
2D CAD: DWG
3D CAD: STEP
