WSSCV-12-N-5

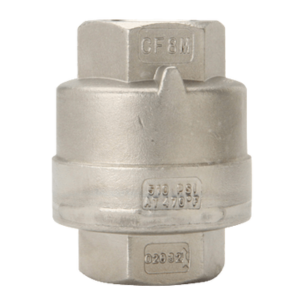

THE MODEL WSSCV IS AN ALL STAINLESS STEEL IN-LINE CHECK VALVE FOR STEAM, GAS, OR LIQUID SERVICE. IT PROVIDES TIGHT SHUT-OFF, MINIMIZES WATER HAMMER AND ALSO STOPS RECYCLING OF PUMPS BY PREVENTING BACK FLOW OF LIQUID. USED IN THE PETROCHEMICAL, PULP & PAPER, TEXTILE AND FOOD & BEVERAGE INDUSTRIES. THE WSSCV ALL STAINLESS STEEL CHECK VALVES WILL OPERATE MUCH LONGER AND ARE LESS PROBLEMATIC THAN BRONZE OR CAST IRON CHECK VALVES.
| Technical Specification |
| Size | 1/2" |
| Connection | NPT |
| Max. Operating Pressure (psig) | 500 |
| Max. Allowable Pressure (psig) | 750 PSIG @ 100˚F |
| Max. Allowable Temperature | 850˚F @ 420 PSIG |
| Weight (lbs) | 1.0 |

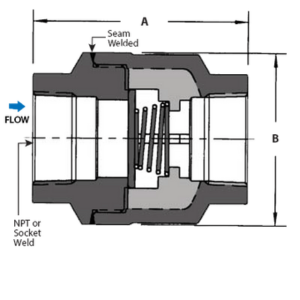

| Dimension | 2.69(A),1.62(B) |

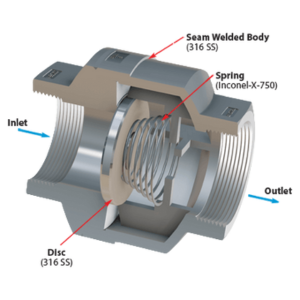

| Material Specification |
| Body | 316 SS |
| Disc | 316 SS |
| Spring | Inconel-X-750 |
