Z2UB12PD205UW

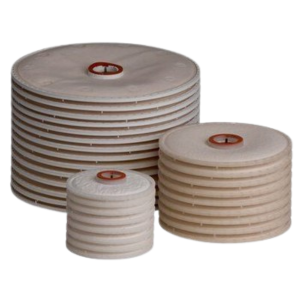

THE ZETA PLUS U & UW SERIES FILTERS FOR THE POWER GENERATION INDUSTRY ARE OFFERED IN TWO FORMULATIONS. THE U FORMULATION IS RECOMMENDED FOR USE WITH OILS CONTAMINATED MAINLY WITH CARBON PARTICLES, AND THE UW FORMULATION IS SPECIFICALLY FORMULATED FOR USE WITH OILS CONTAMINATED WITH BOTH CARBON PARTICLES AND MOISTURE.
| Category Name | Cellulose Depth Filter Cartridges |
| Filter Technology | Adsorbent |
| Product Series | UW, U2 |
| Grade | 10UW, 05U, 05U2W, 05UW |
| Reduction Claims | Non Pertinent |
| Brand | Zeta Plus™ |
| Overall Height (Imperial) | 14.75 inch, 15.38 inch, 7.72 inch, 7.38 inch |
| Overall Diameter (Imperial) | 12 inch |
| Overall Length (Imperial) | 14.75 inch, 7.37 inch, 10.75 inch |
| Overall Length (Metric) | 37.46 centimeter, 18.73 centimeter, 27.3 centimeter |
| Overall Diameter (Metric) | 30.48 centimeter |
| End Modification | Double Open End, CTG ASSY, ZPLUS, CTG ASSY-ZP, CTG-ASSY, ZETA PLUS, CTG ASSY-ZPLUS |
| Filter Type | Depth, Depth - Adsorptive |
| Overall Height (Metric) | 37.46 centimeter, 19.6 centimeter, 39.07 centimeter, 18.75 centimeter |
